Aluminum Center console boat Kits

a 15'-9" stitch and glue or aluminum garvey hull with center console	Build in STITCH & GLUE PLYWOOD or WELDED ALUMINUM

Faculties	Plywood	Aluminum
Length overall	15'-9"
Beam	6'-8"	6'-9"
Draft @ 890 pounds. displacement	6"	7"
Hull level midship	27"
Normal passengers	2-4
Bare hull and deck wt. (approx.)	450 lbs.	575 pounds.
Seat dimensions	5' x 10'	5'-3" x 12'
Hull type: Garvey vee bottom created for Stitch and glue sheet plywood or welded aluminum building. Power: solitary long shaft outboard motor to 85 hp maximum; 50 hp is more than adequate for some utilizes. Light inboard/outboard or jet recommended however detailed. Can the hull be extended or reduced? Yes. Up to 10% by respacing the programs regarding the planking design a proportional amount. We try not to recommend enhancing the ray. Trailer: Designed for use with Glen-L Series 1000 ship trailer programs.

A garvey hull with a squared transom bow provides even more room than main-stream hulls and, however with JIMBO, an ample vee is integrated. These are durable craft, exceptional as work ships and for the fisherman who would like a boat for fishing, maybe not spit and polish. Sure this sort of hull is often as great appearing as you would want, but this can be a boat to utilize, not to ever pamper.

The large cockpit with raised sole forward is kept available with an optional center console (completely detailed) to help you include bench seating or fishing seats to suit. The outboard engine location incorporates a self-draining motorwell. There's lots of room underneath the cockpit location for storage, plus the flat flooring does not have any framework or bulkhead protrusions.

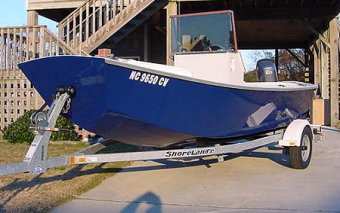

JIMBO in ALUMINUM or JIMBO in WOOD share the same hull, but the plans and patterns tend to be separate; these are not plans with one product then "converted" for another. Each version is intended for building when you look at the product designated; WOOD/PLYWOOD or ALUMINUM.

The ALUMINUM variation functions sheet welded stock incorporating a chine spray railway and durable pipe sheer bumper. The edges tend to be 1/8" while the bottom 3/16" thick with four longitudinal strengthening beams for extra power. The hull is created right-side up in a straightforward cradle creating kind. The medial side and base are fully dimensioned so the typical slice and fit, slice and fit, ad nauseum is eradicated. Cut right out the parts, put them in easy building kind, and begin welding.

The WOOD version makes use of sheet plywood planking built by the simple Stitch and glue strategy. The edges and bottom are totally dimensioned and a complex building kind is not required. Construct the side and base on the plywood, saw to profile, cover the planking around the single building form, keep the seams along with line stitches, follow with fillets (glue), and strengthen with fiberglass laminates. Straight full-length longitudinal members are added to further reinforce the monocoque hull.
